ELiS B

Parametri de baza:

Raza maxima: 5 m
Debit de aer: 2200-6600 m3/h
Masa: 31,7-53,2 kg
Carcasa: aluminiu, plastic, otel
Culoare: alb (RAL 9016)

Sistem de control ELiS B

Sistem de control ELiS B

Fisiere de baza

Print

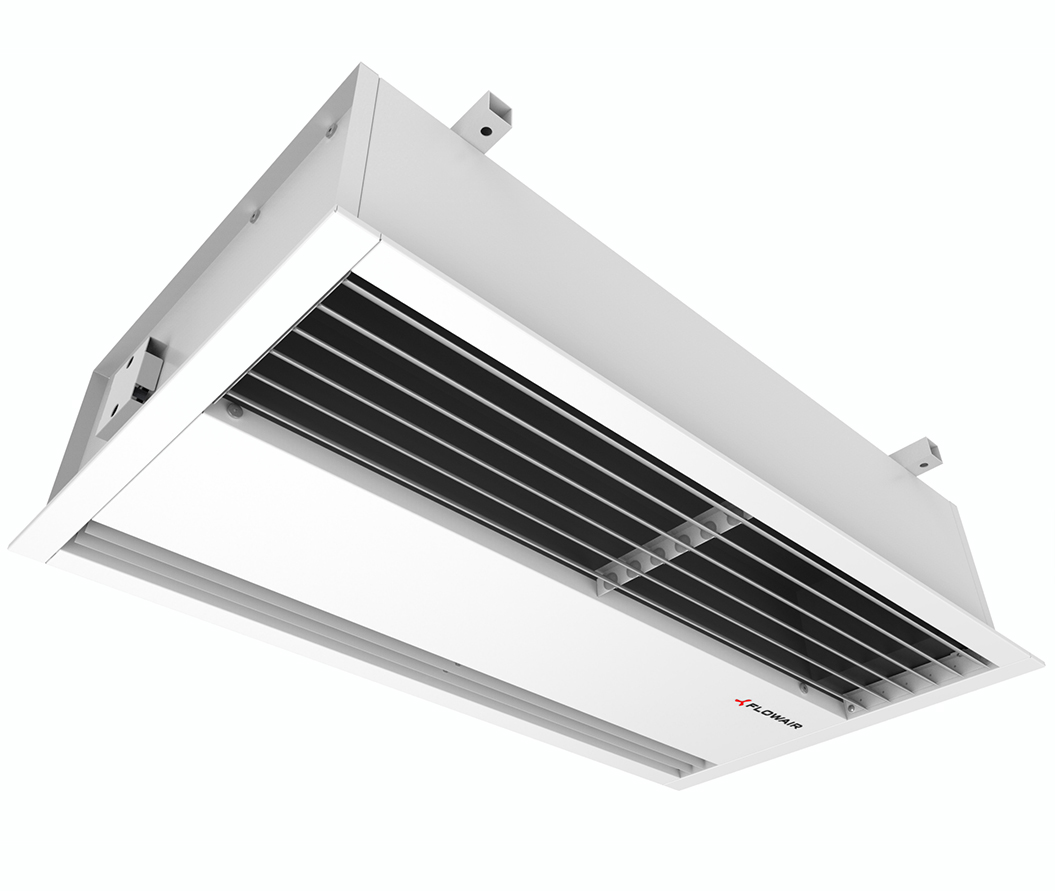

   Descriere scurta:

Perdelele de aer ELIS B reduc pierderile de caldura asociate schimbului de aer dintre incaperi si imprejurimi. Bariera de aer generata previne intrarea aerului rece pe perioada de iarna si a aerului cald in incaperile climatizate pe timp de vara.

Datorita evacuarii ajustabile, putem adapta bariera de aer la caracteristicile usii.

Echipamentele sunt disponibile cu lungimi de 1, 1.5 m si 2 m si in trei variante: cu schimbator de caldura pe apa, cu rezistente electrice si doar ventilatie (fara schimbator de caldura).

Carcasa este produsa din otel (RAL 9016) si EPP (polipropilena expandata). Admisia si evacuarea de aer sunt fabricate din profile de aluminiu adonizat, ceee ce confera echipamentului un aspect modern.



   Scop:

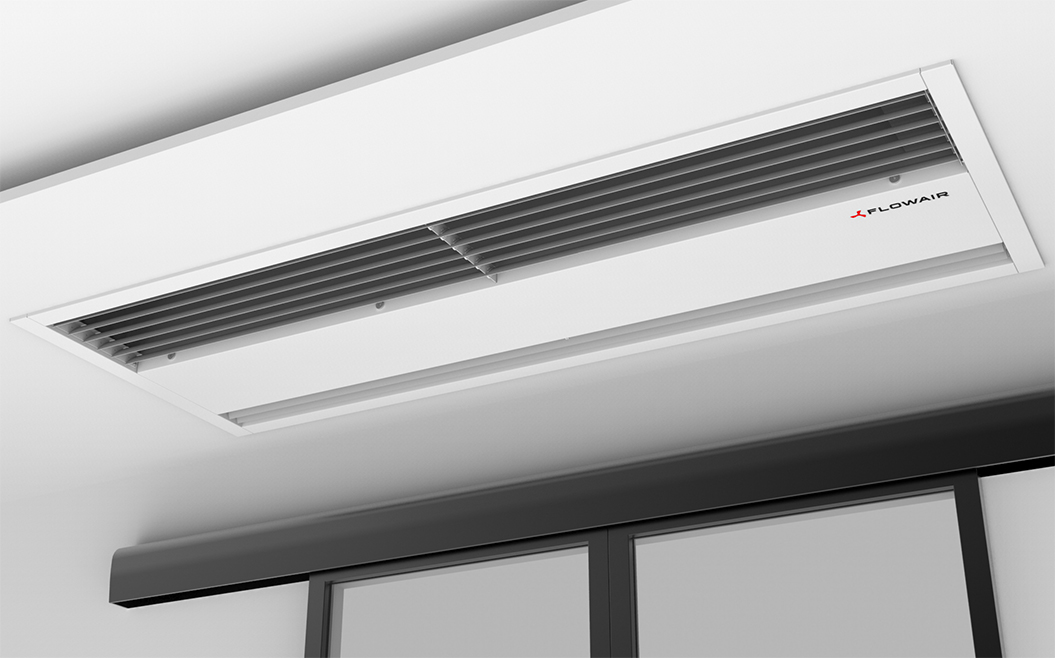

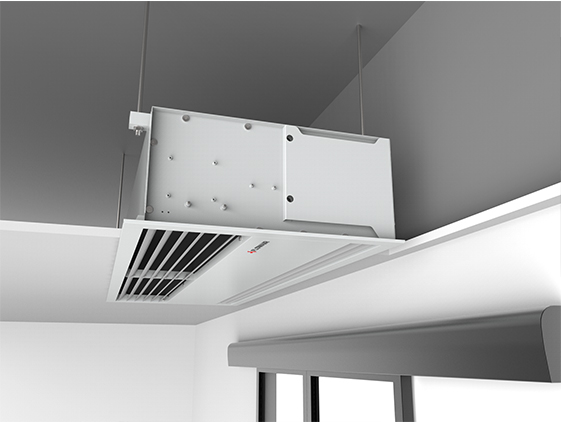

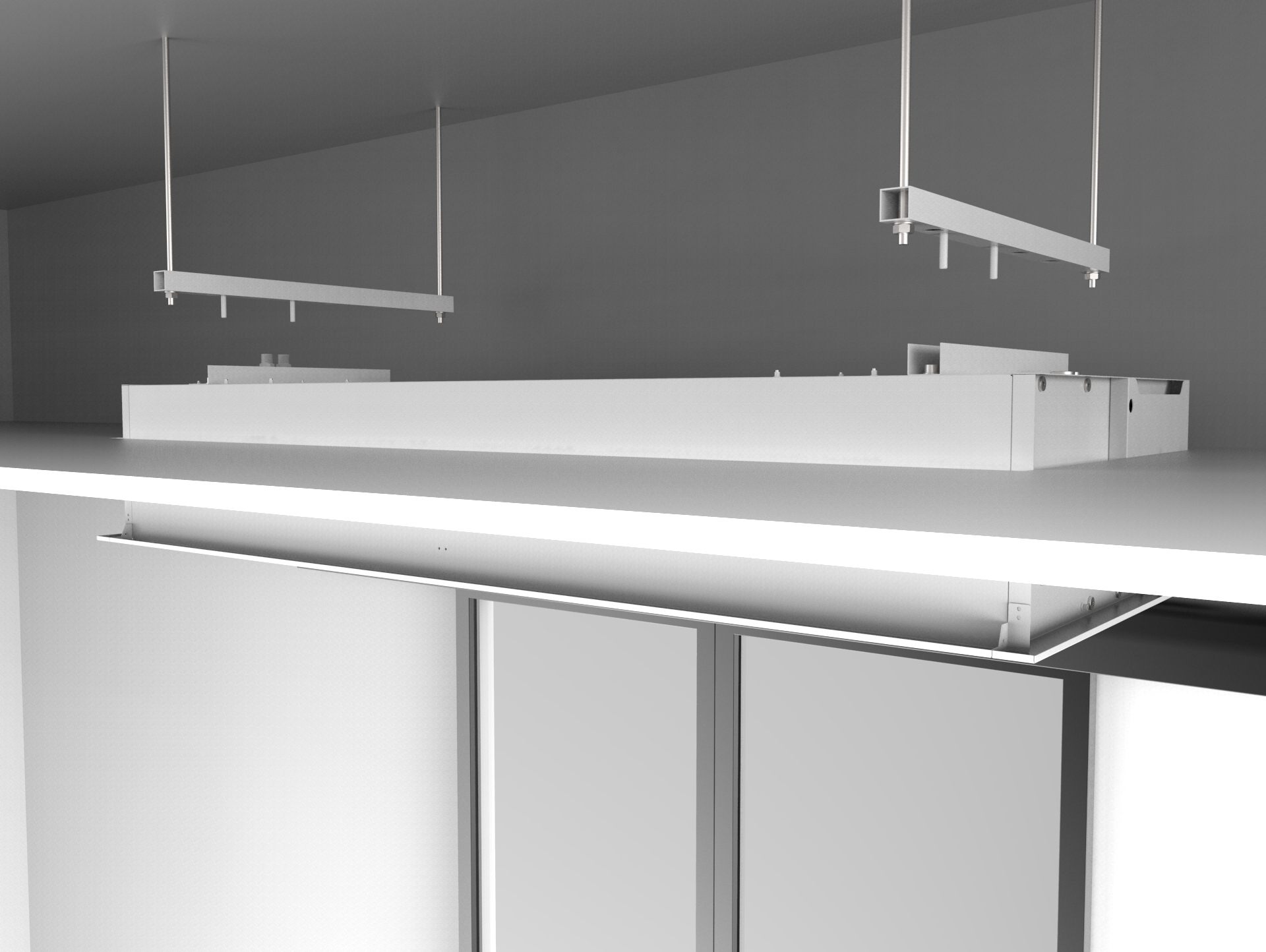

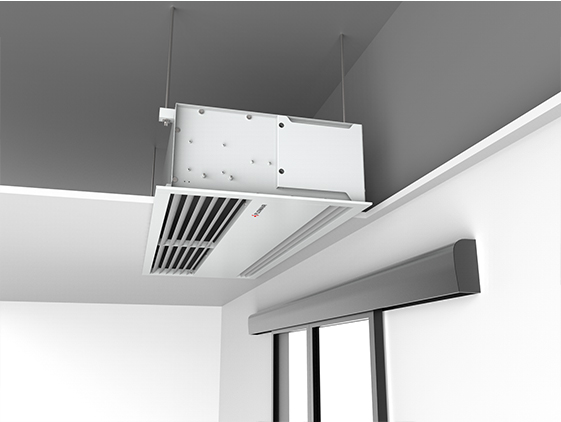

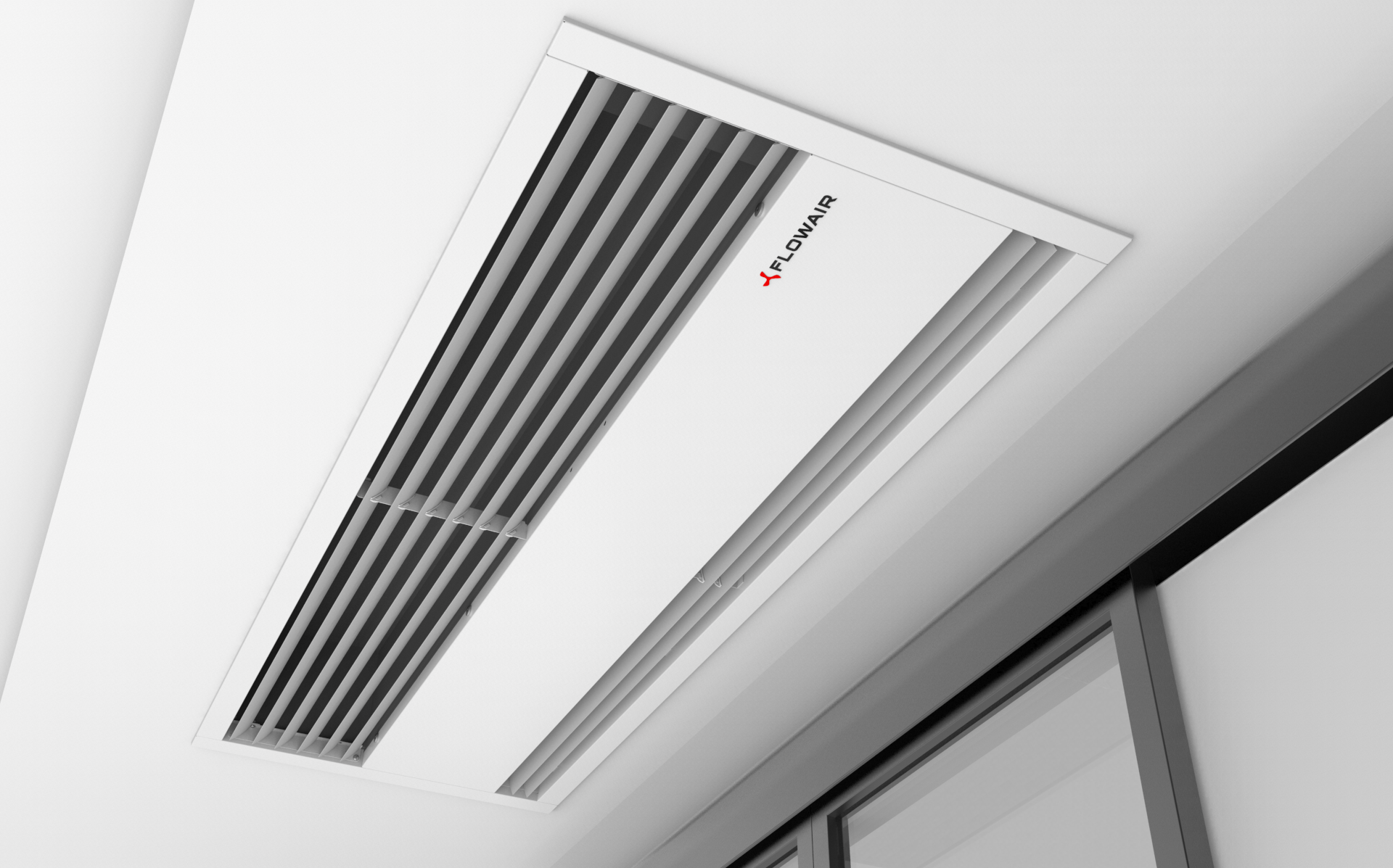

Perdelele de aer ELIS B sunt proiectate pentru a fi incastrate in tavan. Designul modern si dimensiunile reduse permit montarea lor in cladiri reprezentative. Un alt avantaj este posibilitatea montarii lor in tavane existente, fara a fi necesara decuparea de orificii suplimentare.




   Sistem de control:

Perdelele de aer ELIS B sunt echipate cu controllere DRV cu BMS.

vezi mai mult


   Tehnologie/inovatie/beneficii:

Constructie - combinarea mai multor materiale precum EPP, plastic, otel si aluminiu, rezulta in reducerea semnificativa a greutatii echipamentului si in acelasi timp a nivelului de zgomot.

Unitatile sunt echipate cu sistem de acces la elementele sistemelor de incalzire si control.



Pentru a calcula puterea termica a echipamentelor, va rugam utilizati programul de mai jos.

Putere ELiS B 100:

ELiS B-W-100

Tp1 V PT Qw Δpw Tp2 PT Qw Δpw Tp2
°C m3/h kW l/h kPa °C kW l/h kPa °C
    Tw1 / Tw2 = 90/70oC Tw1 / Tw2 = 80/60oC
0 2200/2500/2600 12,6/13,5/13,8 558/597/609 1,9/2,2/2,3 17,0/16,0/15,5 10,6/11,3/11,5 465/497/507 1,4/1,6/1,7 14,0/13,5/13,0
5 11,8/12,6/12,8 519/555/566 1,7/1,9/2,0 21,0/20,0/19,5 9,7/10,4/10,6 426/455/464 1,2/1,3/1,4 18,0/17,5/17,0
10 10,9/11,6/11,9 480/513/524 1,5/1,6/1,7 24,5/23,5/24,5 8,8/9,4/9 386/413/395 1,0/1,1/1,1 21,5/21,0/21,5
15 10,0/10,7/10,9 441/471/481 1,3/1,4/1,5 28,0/27,5/27,0 7,9/8,5/8,6 347/370/378 0,8/0,9/1,0 25,5/25,0/24,5
20 9,1/9,7/9,9 402/429/438 1,1/1,2/1,2 32,0/31,5/31,0 7,0/7,5/7,6 306/328/334 0,7/0,8/0,8 29,5/29,0/28,5
    Tw1 / Tw2 = 70/50oC Tw1 / Tw2 = 70/40oC
0 2200/2500/2600 8,5/9,0/9,2 370/396/404 1,0/1,1/1,2 11,5/11,0/10,5 5,3/5,8/5,9 153/168/172 0,2/0,2/0,3 7,0/6,5/6,5
5 7,5/8,1/8,2 330/353/360 0,7/0,8/0,9 15,0/14,5/14,0 2,8/2,9/2,9 83/85/86 0,1/0,1/0,1 9,0/8,5/8,5
10 6,6/7,1/7,2 290/310/316 0,6/0,6/0,7 19,0/18,5/18,0 2,5/2,5/2,6 72/74/75 0,1/0,1/0,1 13,5/13,0/12,5
15 5,7/6,1/6,2 248/266/271 0,5/0,5/0,6 22,5/22,0/21,5 2,1/2,2/2,2 62/63/64 0,1/0,1/0,1 18,0/17,5/17,5
20 4,7/5,0/5,1 204/220/225 0,3/0,4/0,4 26,0/25,5/25,0 1,8/1,8/1,8 51/53/53 0,1/0,1/0,1 22,5/22,0/22,0
    Tw1 / Tw2 = 60/40oC Tw1 / Tw2 = 50/40oC
0 2200/2500/2600 6,2/6,6/6,8 269/289/295 0,6/0,6/0,7 8,5/8,0/7,5 6,8/7,3/7,5 594/636/649 2,4/2,7/2,8 9,5/9,0/8,5
5 5,2/5,6/5,7 226/243/249 0,4/0,4/0,5 12,0/12,0/11,5 5,9/6,3/6,5 514/550/562 1,9/2,1/2,2 13,0/12,5/12,5
10 4,1/4,5/4,6 178/193/198 0,3/0,3/0,3 15,5/15,0/15,0 5,0/5,3/5,6 434/464/474 1,4/1,5/1,6 17,0/16,5/16,0
15 2,0/2,1/2,1 88/90/91 0,1/0,1/0,1 18,0/17,5/17,5 4,0/4,3/4,4 352/377/385 0,9/1,1/1,1 20,5/20,0/20,0
20 1,6/1,7/1,7 72/74/74 0,1/0,1/0,1 22,5/22,0/22,0 3,1/3,3/3,4 266/285/292 0,6/0,6/0,7 24,5/24,0/24,0



Putere ELiS B 150:

ELiS B-W-150

Tp1 V PT Qw Δpw Tp2 PT Qw Δpw Tp2
°C m3/h kW l/h kPa °C kW l/h kPa °C
    Tw1 / Tw2 = 90/70oC Tw1 / Tw2 = 80/60oC
0 3200/3500/4000 20,9/21,9/23,5 923/968/1039 5,9/6,5/7,4 19,6/18,5/17,5 17,8/18,7/20,0 783/821/881 4,5/4,9/5,6 16,5/16,0/15,0
5 19,6/20,5/22,0 863/905/972 5,3/5,6/6,6 23,0/22,5/21,5 16,4/17,3/18,5 722/758/813 3,9/4,3/4,9 20,0/19,5/18,5
10 18,2/19,1/20,5 803/842/904 4,6/5,0/5,7 27,0/26,0/25,0 15,0/15,8/17,0 662/694/745 3,3/3,6/4,1 24,0/23,0/22,5
15 16,8/17,6/19,0 742/779/835 4,0/4,4/5,0 30,5/30,0/30,0 13,7/14,3/15,4 601/630/676 2,8/3,0/3,5 27,5/27,0/26,5
20 15,5/16,2/17,4 682/715/767 3,4/3,7/4,2 34,0/33,5/32,5 12,3/12,9/13,8 539/566/607 2,3/2,5/2,8 31,0/30,5/30,0
    Tw1 / Tw2 = 70/50oC Tw1 / Tw2 = 70/40oC
0 3200/3500/4000 14,7/15,4/16,5 642/674/723 3,3/3,6/4,0 13,5/13,0/12,5 11,5/12,1/13,0 335/352/378 1,0/1,1/1,3 10,5/10,0/9,6
5 13,3/13,9/15,0 581/610/655 2,7/3,0/3,4 17,5/16,5/16,0 10,1/10,5/11,3 293/307/330 0,8/0,9/1,0 14,5/14,0/13,5
10 11,9/12,5/13,4 520/546/585 2,2/2,4/2,8 21,0/20,5/20,0 8,6/9,0/9,7 249/262/281 0,6/0,7/0,8 18,0/17,5/17,0
15 10,5/11,0/11,78 458/481/516 1,8/1,9/2,2 24,5/24,0/23,5 7,0/7,3/7,9 202/213/230 0,4/0,5/0,5 21,5/21,0/20,5
20 9,0/9,5/10,2 395/415/445 1,4/1,5/1,7 28,0/27,5/27,5 5,1/5,4/6,0 147/158/173 0,2/0,3/0,3 24,5/24,5/24,0
    Tw1 / Tw2 = 60/40oC Tw1 / Tw2 = 50/40oC
0 3200/3500/4000 11,5/12,0/13,0 500/525/563 2,2/2,4/2,7 10,5/10,0/9,5 11,5/12,0/13,0 1001/1050/1128 7,7/8,4/9,5 10,5/10,0/9,5
5 10,1/10,5/11,5 438/460/494 1,7/1,9/2,1 14,5/14,0/13,5 10,1/10,6/11,4 878/922/990 6,1/6,6/7,5 14,5/14,0/13,5
10 8,6/9,0/9,7 375/394/423 1,3/1,4/1,6 18,0/17,5/17,0 8,7/9,1/9,8 755/793/851 4,6/5,0/5,7 18,0/17,5/17,0
15 7,1/7,5/8,1 311/327/351 0,9/1,0/1,1 21,5/21,0/21,0 7,3/7,6/8,2 631/662/711 3,3/3,6/4,1 21,5/21,5/21,0
20 5,6/5,9/6,3 243/256/276 0,6/0,7/0,7 25,0/24,5/24,5 5,8/6,1/6,5 505/530/568 2,2/2,4/2,8 25,5/25,0/24,5



Putere ELiS B 200:

ELiS B-W-200

Tp1 V PT Qw Δpw Tp2 PT Qw Δpw Tp2
°C m3/h kW l/h kPa °C kW l/h kPa °C
    Tw1 / Tw2 = 90/70oC Tw1 / Tw2 = 80/60oC
0 4000/4300/5200 27,6/28,7/31,8 1217/1266/1402 11,4/12,2/14,7 20,5/19,5/18,0 23,6/24,6/27,7 1038/1080/1195 8,7/9,4/11,3 17,5/17,0/15,5
5 25,8/26,9/29,7 1140/1186/1312 10,0/10,8/13,0 24,0/23,5/22,0 21,9/22,7/25,2 961/999/1106 7,6/8,2/9,8 21,1/20,5/19,5
10 24,0/25,0/27,7 1063/1105/1223 8,9/9,5/11,5 27,5/27,0/25,7 20,1/20,9/23,1 883/918/1016 6,5/7,0/8,4 25,0/24,5/22,5
15 22,3/23,2/25,7 985/1024/1133 7,7/8,3/10,0 32,5/30,5/29,5 18,3/19,0/21,0 804/836/925 5,5/5,9/7,1 28,5/28,0/27,0
20 20,5/21,4/23,6 907/943/1043 6,6/7,1/8,8 35,0/34,5/33,0 16,5/17,2/19,0 725/754/834 4,6/4,9/5,9 32,0/31,5/30,5
    Tw1 / Tw2 = 70/50oC Tw1 / Tw2 = 70/40oC
0 4000/4300/5200 19,7/20,5/22,5 860/894/990 6,4/6,9/8,3 14,5/14,0/13,0 16,1/16,7/18,5 468/487/538 2,2/2,3/2,8 12,0/11,5/10,5
5 17,9/18,6/20,5 782/813/900 5,4/5,8/6,9 18,0/17,5/17,0 14,3/14,8/16,4 414/431/477 1,8/1,9/2,3 15,5/15,0/14,5
10 16,1/16,7/18,5 703/731/809 4,5/4,7/5,7 21,5/21,5/20,5 12,4/12,9/14,2 360/374/414 1,4/1,5/1,8 19,0/19,0/18,0
15 14,5/14,8/16,4 624/649/717 3,6/3,8/4,6 25,5/25,0/24,5 10,4/10,9/12,0 304/316/350 1,0/1,1/1,3 22,5/22,5/21,5
20 12,4/12,9/14,3 544/565/625 2,8/3,0/3,6 29,0/28,5/28,0 8,4/8,8/9,6 245/256/284 0,7/0,7/0,9 26,0/26,0/25,5
    Tw1 / Tw2 = 60/40oC Tw1 / Tw2 = 50/40oC
0 4000/4300/5200 15,6/16,3/18,0 681/708/784 4,6/4,7/5,6 11,5/11,0/10,5 15,3/15,9/17,6 1327/1380/1529 14,8/15,9/19,2 11,5/11,0/10,0
5 13,8/14,4/15,9 602/626/693 3,5/3,7/4,5 15,0/15,0/14,0 13,5/14,0/15,5 1170/1217/1348 11,8/12,7/15,2 15,0/14,5/13,5
10 12,0/12,5/13,8 522/543/601 2,7/2,9/3,5 18,5/18,5/18,0 11,6/12,1/13,4 1012/1052/1165 9,1/9,7/11,7 18,5/18,5/17,5
15 10,1/10,5/11,6 441/458/507 2,0/2,1/2,6 22,5/22,0/21,5 9,8/10,2/11,3 852/886/981 6,6/7,1/8,6 22,5/22,0/21,5
20 8,2/8,5/9,5 357/372/412 1,4/1,5/1,8 26,0/25,5/25,0 7,9/8,3/9,1 690/718/794 4,6/4,9/5,6 25,5/25,5/25,0

V – debit aer
PT - putere termica
Tp1 - temperatura aer admisie
Tp2 - temperatura aer evacuare
Tw1 - temperatura intrare apa
Tw2 - temperatura iesire apa
Qw - debit de apa in schimbator
Δpw - pierderea de presiune in schimbator

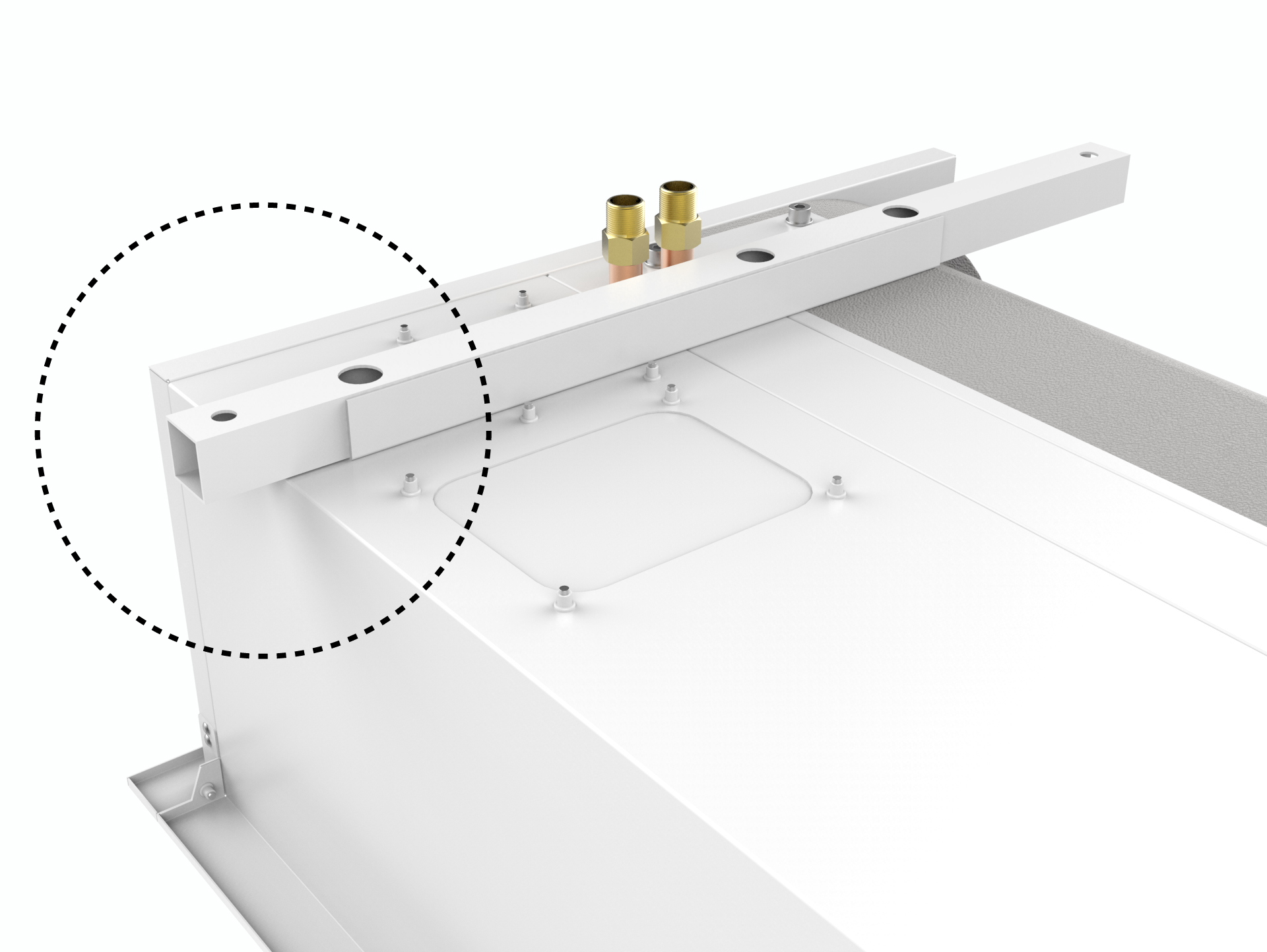

ELIS B sunt dotate cu console de montaj cu dibluri.

lis B      elis B

elis b      elis b

  • Manual

    (4.90 MB)

  • CAD

    (1.60 MB)

  • Certificate

    (243.42 kB)

  • Catalog

    (13.60 MB)

  • Lista de cataloage

    (3.01 MB)
